Toro® TH663i
- Dimensions (LxWxH)
- 11,600 x 3,500 x 3,500 mm
- Capacity
- 63,000 kg
- Box range
- 24 - 40 m³

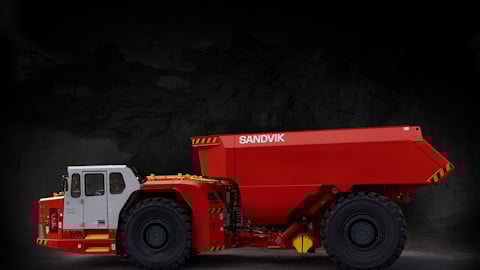

Toro® TH663i truck with its 63-tonne payload capacity is purpose-built for underground environments, offering a potent combination of intelligence, high productivity and sustainability within a single dump truck.
Features
-
Highly efficient
Toro® TH663i truck’s low weight, 63-tonne payload capacity and high ramp speeds enhance ore transportation efficiency. The reduced weight improves productivity, lowers fuel consumption, minimizes tire wear and reduces overall operating costs.
-
Advanced engine technology
The truck features a Stage II / Tier 2 engine, offering long engine life time, low fuel consumption and low cost of ownership. When ultra-low sulfur fuel is available, Sandvik offers a Stage V engine as option. Both engines can use EN 15940-compliant renewable paraffinic diesel fuels, reducing exhaust emissions.
-
Premium cabin ergonomics
The cabin provides comfortable working conditions, supporting the operator to utilize the truck’s full potential. With premium ergonomics, including air conditioning, dust- and noise-resistant upholstery materials, and multiple adjustment possibilities, it ensures optimal operator comfort.
Product specifications
- Dimensions (LxWxH)
- 11,600 x 3,500 x 3,500 mm
- Capacity
- 63,000 kg
- Box range
- 24 - 40 m³
- Maximum payload
- 63,000 kg
- Standard dump box
- 36 m³
- Dump box range
- 24 - 40 m³
- Dump box motion: discharging time
- 16 sec
- Dump box motion: dumping angle
- 62 degrees
- Total operating weight
- 48,400 kg
- Front axle operating weight
- 33,400 kg
- Rear axle operating weight
- 15,040 kg
- Total loaded weight
- 111,440 kg
- Front axle loaded weight
- 48,520 kg
- Rear axle loaded weight
- 62,920 kg
- Engine type
- Diesel engine - Volvo TAD1643VE-B (Tier 2)
- Torque
- 3261 Nm @ 1300 rpm
- Output
- 565 kW @ 1900 rpm
- Fuel tank capacity
- 850 l
*Dimensions are indicative only
Learn more about Toro® TH663i features
Enhanced operator safety
The ROPS- and FOPS-certified cabin protects the operator and enhances safety. Toro® TH663i features 3-layer laminated safety glass windows, an illuminated entrance with secure handles, anti-slip steps and a door system with a magnetic interlock switch that activates the brakes upon opening.
Maintenance friendly
Daily maintenance is carried out at ground level. When accessing the top is needed, 3-point contact handles, anti-slip steps, perforated top covers and anti-slip tapes ensure steady grip. Standard safety features include lockable switches, articulation lock, box support and wheel chocks.
Integrated jacking system
The optional integrated jacking system provides a safer, quicker solution for lifting the truck during tire failure. It can elevate the fully loaded truck using a hydraulic system and is controlled remotely.
Low cost per tonne
The fuel-efficient Volvo engine ensures durability and cost-effectiveness. The equipment's low weight, efficient engine technology, fast ramp speeds and up to 25% lower fuel consumption result in a low cost per tonne. Reduced fuel consumption also aids in CO2 emission reduction.
Sustainable Options
Sandvik now offers an optional dump box made with SSAB Zero™ steel for Toro® TH663i and Toro® TH551i dump trucks. The box is made using recycled steel, and it meets the same quality and performance standards as the traditional steel. When Sandvik manufactures a box with SSAB Zero™ steel, the cradle-to-gate CO2 emissions are 70 percent less than those of a traditional box.
