Rock support drill rigs
DS312
- Bolting coverage
- 6.3 x 2.1 m (optimum)
- Hole size
- 33 - 43 mm
- Tramming type and distance
- Hydrostatic transmission - Diesel engine - TCD2012 (74 kW, Tier 3, Stage IIIA, Canmet, China 2)

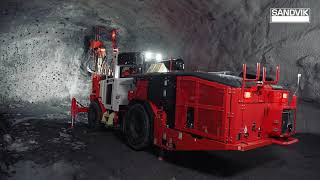

Sandvik DS312 is a one-man-operated, compact and highly versatile rock support drill with a dedicated screen handler boom designed for fully mechanized rock reinforcement in underground mines with small and medium cross sections.
Features
-
Independent mesh handler
This mesh handler is installed on its own boom with continuous 360° screen rollover. The mesh can easily be grabbed from the side wall or floor. It allows a safer and faster mechanized meshing process.
-
Optional instrumentation package
Sandvik Bolting Instrumentation (SBI) and the SB70S instrumented boom combined with data transfer ensure a safer, smoother bolting process as the operator has all valuable information available on the rig’s touch screen.
-
Optimized working environment
This drill rig offers two modern, ergonomic FOPS/ROPS cabins (standard or low-height option) for maximum operator comfort with improved visibility and reduced noise level.
Product specifications
- Bolting coverage
- 6.3 x 2.1 m (optimum)
- Hole size
- 33 - 43 mm
- Tramming type and distance
- Hydrostatic transmission - Diesel engine - TCD2012 (74 kW, Tier 3, Stage IIIA, Canmet, China 2)
- Bolt length
- 1.5 - 3.0 m (5.0 - 10.0 ft.)
- Bolt type
- GCR, GCC, WI, S, M, MD
- Grouting method
- Resin cartridges, cement cartridges
- Rock drill
- RD314, 14 kW
- Controls type
- THC561, hydraulic control
- Automation package
- None
- Weight
- 16,000 kg (depending on options)
Learn more about DS312 features
Higher productivity
Achieve up to 35% higher penetration rates with the new SBH bolting head and RD314 rock drill, combined with fast and easy wire mesh reinforcement from the SB40SH screen handler boom, which features 360° continuous rotation.
Versatility
DS312 bolter comes in three versions: DS312 (diesel tramming and electric drilling), DS312D (diesel engine for tramming and drilling for areas without electrical power) and DS312DE (diesel tramming and electric or diesel drilling).
