Low-Profile loaders

Toro™ LH209L

Dimensions (LxWxH)
10,000 x 3,500 x 1,700 mm
Capacity
9,600 kg
Bucket range
4.6 - 5.4 m³

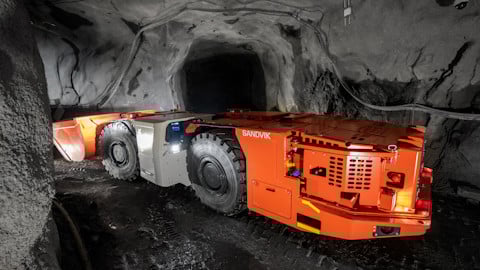

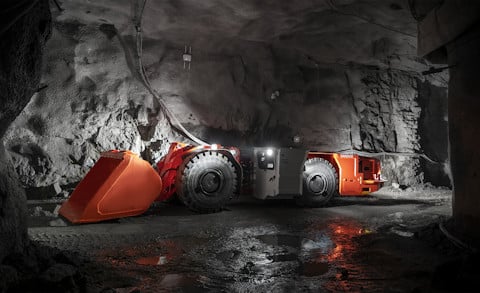

Toro™ LH209L low profile loader

Toro™ LH209L loader is a robust and dependable low-profile loader. It offers the largest payload capacity (at 9,600 kg) in its size class and is designed for underground mining operations with headrooms as low as 1.8 meters.

Features

Product specifications

Dimensions (LxWxH)
10,000 x 3,500 x 1,700 mm
Capacity
9,600 kg
Bucket range
4.6 - 5.4 m³
Maximum tramming capacity
9,600 kg
Break out force, lift
20,160 kg
Break out force, tilt
17,540 kg
Standard bucket size
4.6 m³
Speed 1st gear
4.1 km/h
Speed 2nd gear
7.6 km/h
Speed 3rd gear
12.8 km/h
Speed 4th gear
20.8 km/h
Bucket motion times
Raising time: 6.5 sec, lowering time: 4.0 sec, dumping time: 1.5 sec
Operating weight
25,800 kg
Loaded weight
35,400 kg
Steering hydraulics: main valve
Open center type
Bucket hydraulics: boom system
Z-link
Bucket hydraulics: dump cylinder
160 mm, 2 pcs

*Dimensions are indicative only

Toro™ LH209L low profile loader

Learn more about LH209L features

Advanced powertrain technology

This loader has an energy-efficient transmission with speed sensors and streamlined hydraulics. The transmission and hydraulics configuration is optimized for efficiency. Durable axles with limited slip differentials ensure traction and spring-applied hydraulic release (SAHR) brakes increase its safety.

Effective bucket filling

An optimized boom design delivers exceptional breakout forces, ensuring quick and efficient bucket filling and effective handling of oversized rocks.
