Diesel trucks
Toro® TH320
- Dimensions (LxWxH)
- 9,100 x 2,200 x 2,400 mm
- Capacity
- 20,000 kg
- Box range
- 11 - 14 m³

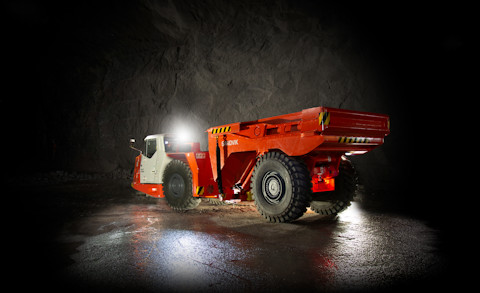

Toro® TH320 truck is a 20-tonne mining vehicle tailored for small and medium-sized hard rock mines. Despite its high payload capacity, it maintains the same overall width as typical 15-tonne trucks.
Features
-
High performance underground
This underground truck has a robust structure, compact size and purpose-built components to ensure productivity in challenging environments. It features an improved front approach angle to minimize impacts on rough terrain.
-
Low fuel consumption
The 235 kW Tier 3 Volvo engine is equipped with a catalytic purifier and muffler, ensuring engine longevity in underground mining. The fuel-efficient 8-liter engine with advanced injection technology promotes efficient combustion and minimal fuel consumption.
-
Narrow width
Its narrow size is designed for operation in small and medium-sized hard rock mines and fits in 3 x 3 meter headings.
Product specifications
- Dimensions (LxWxH)
- 9,100 x 2,200 x 2,400 mm
- Capacity
- 20,000 kg
- Box range
- 11 - 14 m³
- Maximum payload
- 20,000 kg
- Standard dump box
- 11 m³
- Dump box range
- 11 - 14 m³
- Dump box motion: discharging time
- 11 sec
- Dump box motion: dumping angle
- 65 degrees
- Total operating weight
- 22,600 kg
- Front axle operating weight
- 16,800 kg
- Rear axle operating weight
- 5,800 kg
- Total loaded weight
- 52,600 kg
- Front axle loaded weight
- 21,100 kg
- Rear axle loaded weight
- 21,500 kg
- Engine type
- Diesel engine - Volvo TAD853VE (Tier 3)
- Torque
- 1310 Nm @ 1450 rpm
- Output
- 235 kW @ 2200 rpm
- Fuel tank capacity
- 340 l
*Dimensions are indicative only
Learn more about Toro® TH320 features
Easy maintenance
This underground truck offers convenient ground-level daily maintenance. Safety is enhanced with features such as a lockable main switch, articulation lock and box maintenance support. Sandvik Intelligent Control System monitors equipment health and offers early warnings.
Optional ejector box
The truck comes with a wide range of box options including an ejector box for backfilling and unloading in areas of restricted dump height.
Optimized grease consumption
The automatic central lubrication system optimizes grease consumption and enhances the lifespan of bushes and bearings. It’s activated by the Sandvik Intelligent Control System when the parking brake is released, ensuring effective lubrication of hard-to-reach areas and reducing service time.
